This is the 11th in our series of posts where we are sharing drawings for the White Horse CAD Wobbler Engine. This week we will look at the Wobbler Engine Piston Block Stud.
Next week we will look at the Wobbler Engine Piston Block Washer.
Lets look at the Wobbler Engine Piston Block Stud in a little more detail. If you would like to refer to the PDF engineering drawing it can be found by clicking here… P9999-11102_Rev1

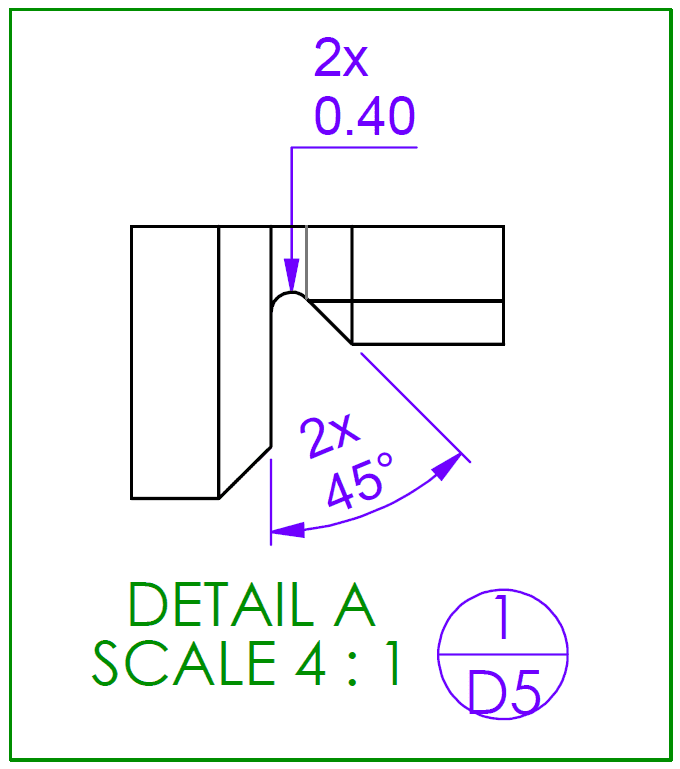

The Wobbler Engine Piston Block is another straight forward component. You may notice we have added an undercut feature at the end of each thread. This simple feature gives the thread a small run out and guarantees there will be no interference between the thread and its mating part. It also makes it easier to thread up to a hard stop. The feature can be easily created using conventional tooling, or even by hand grinding a piece of High Speed Steel to the correct form.
Disclaimer
This project has never been made. For that reason, White Horse CAD are not able to offer any warranty or guarantee that the plans can be used to build a working engine.
This series of engineering drawings is intended to demonstrate capability in using SolidWorks. If anyone manufactures a version of this engine White Horse CAD shall not be held responsible for errors or omissions in the drawings
Don’t miss the next in the series… … sign up here… Have a project you would like to discuss?… Contact us here…
