This is the 12th in our series of posts where we are sharing drawings for the White Horse CAD Wobbler Engine. This week we will look at the Wobbler Engine Piston Block Washer.

Next week we will look at the Wobbler Engine Adjuster Nut.

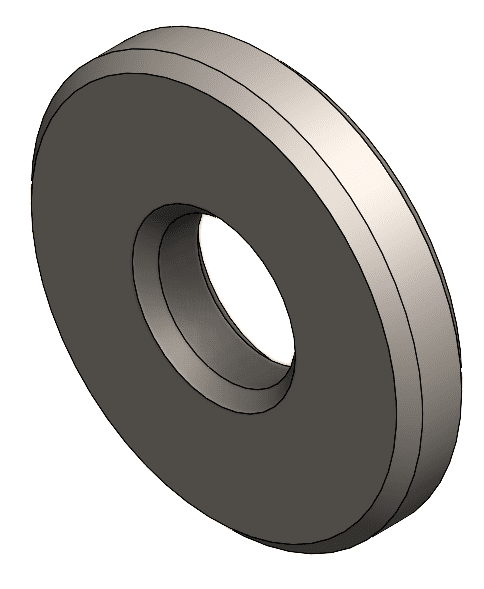

Lets look at the Wobbler Engine Piston Block Washer in a little more detail. If you would like to refer to the PDF engineering drawing it can be found by clicking here… P9999-11103_Rev1

The Wobbler Engine Piston Block Washer is another straight forward component. It’s purpose is to ensure the Adjuster Nut can be adjusted easily without catching on the end of the spring. When assembled the adjuster nut will be adjusted to allow the Bearing Block to move easily, while keeping it fully mated against the main support.

This project has never been made. For that reason, White Horse CAD are not able to offer any warranty or guarantee that the plans can be used to build a working engine.
This series of engineering drawings is intended to demonstrate capability in using SolidWorks. If anyone manufactures a version of this engine White Horse CAD shall not be held responsible for errors or omissions in the drawings
